Wash water Recycling Equipment

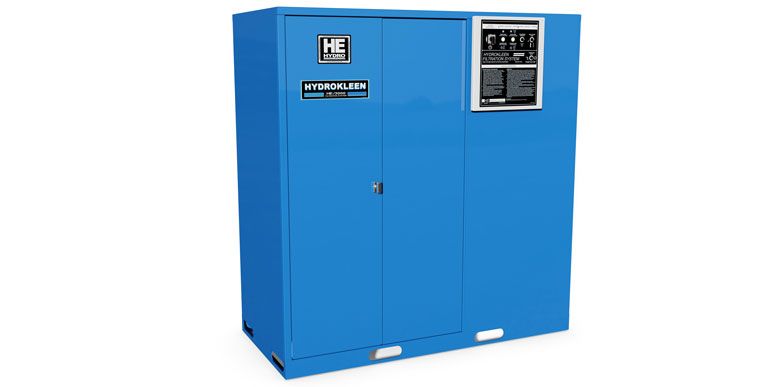

HE/3000: PLC & touch screen that provides factory remote system monitoring and reporting of any connected devices. HE/3000 filtration systems are designed to filter wash water for recycling back to wash applications or for sewer discharge. Each system is configured with an integrated 110-gallon process tank. HE/3000 systems control the waste stream as it is pumped or gravity fed into the polishing loop . The polishing loop includes a process tank, high volume pump, air injection system and media filter. Wash water in the polishing loop circulates at a rate of about 100GPM through a media filter and back to the process tank to ensure superior solids removal. The media filter uses one of several available media types that target specific contaminates in the waste stream to maximize filtration performance. The polishing loop can be fitted with optional equipment if odor control , foam control or pH adjustment is required. Up to 12 GPM of filtered wash water can be delivered to wash application
