Multimedia Filtration

PLC & touch screen that provides factory remote system monitoring and reporting of any connected devices.

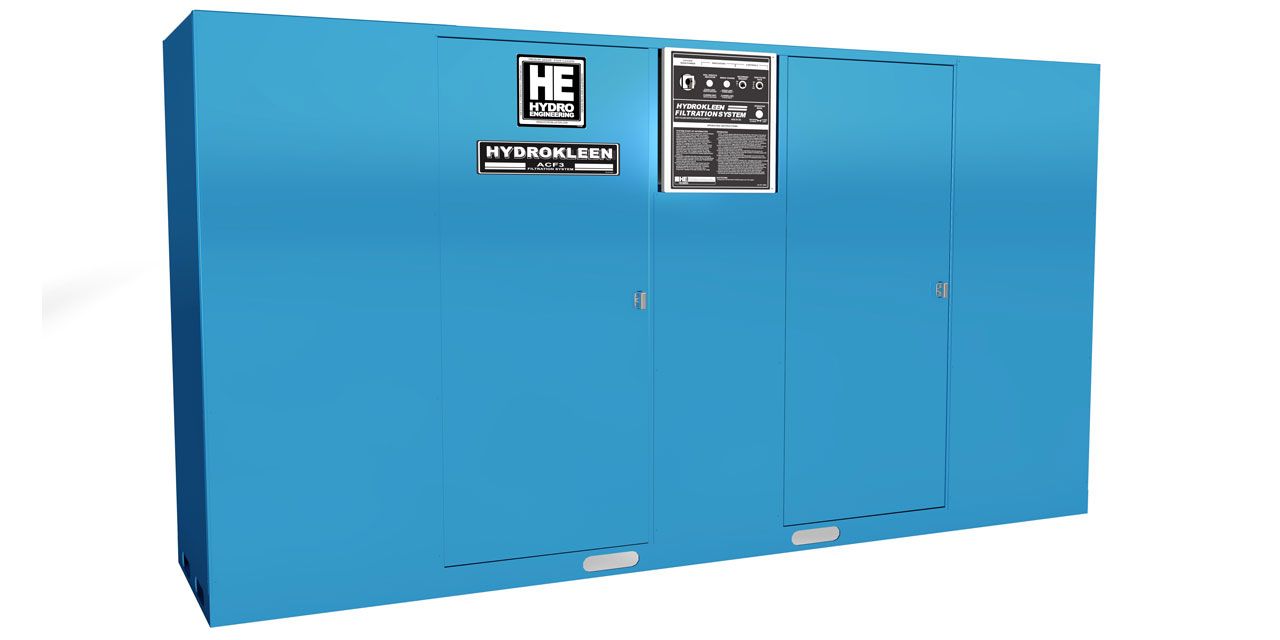

ACF3 filtration system uses multiple media filters with associated process tanks to remove solids (including heavy metals). The Biodigester dosing option which promotes organic waste digestion to control odor and reduce COD and BOD levels in the waste stream is included in the typical configuration.

ACF3 controls inflow and outflow of the waste water stream. Inflow is pumped or gravity fed into the first of two polishing loops. Each loop includes a process tank, high volume pump, air injection system and media filter. Wash water in the polishing loop circulates at a rate of about 100GPM through a media filter and back to a process tank to ensure superior solids removal. The media filter uses one of several available media types that target specific contaminates in the waste stream to maximize filtration performance. Outflow is controlled with a motorized ball valve.

The polishing loops can be fitted with optional equipment if odor control, foam control or pH adjustment is required. Up to 12 GPM of filtered wash water can be delivered to wash applications or discharged to sewer. The integrated PLC controls and monitors system operation and promotes optimum performance.

Hydrokleen filtration/recycling systems are UL-979 an d CSA certified, and conform to CE standards.

Model Specifications

ACF3
